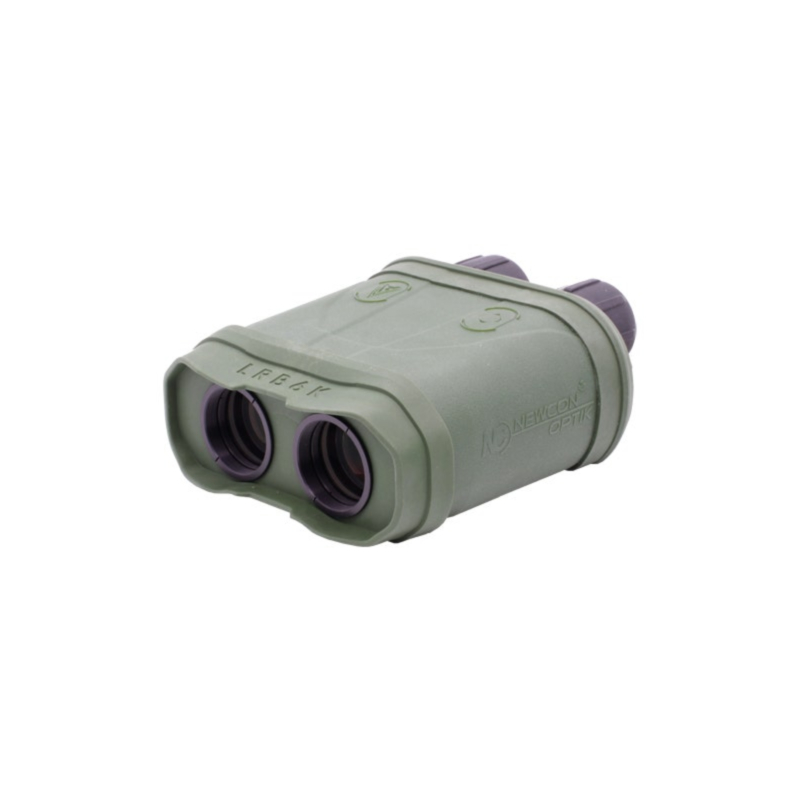

Newcon Optik, LRB6K Laser Rangefinder Binocular, Compass, Inclinometer, Bluetooth, Hard Case
ESTIMATED DELIVERY | 4-6 WEEKS
We will notify you when this item becomes available.
LRB 6K
NSN#: 1240-20-010-6217
The LRB 6K is built to outperform any handheld laser rangefinder binocular available today. Packing a virtually endless set of performance features into a MIL-SPEC form factor, the LRB 6K can handle anything professional operators can throw its way. A 6,000 metre (NATO target) measuring range, built-in digital magnetic compass, and a crystal-clear LED display are combined into an invaluable force multiplier.
The LRB 6K requires virtually no maintenance and very little operational training. Through USB, Bluetooth and RS-232 interfaces, the LRB 6K can be operated remotely, have its stored data exported, and communicate with external GPS systems and ballistic computers (only with Bluetooth installed). Users can now communicate with the LRB 6K using Newcon Optik’s new NC Cronus app.
FEATURES
| 6,000 metre measuring range |
| Built-in digital magnetic compass |
| USB, Bluetooth, NMEA and RS232 interfaces |
| Android™ Compatible |
| Easy to use |
SPECS
| Optics | |
| Magnification (x) | 7 |
| Objective lens diameter (mm) | 42 |
| Field of view (°) | 6 |
| Eye relief (mm) | 20 |
| Diopter adjustment range | ±5 |
| Interpupillary distance (mm) | 58 – 72 |
| Rangefinder | |
| Eye safety | Class 1, eye-safe |
| Wavelength (nm) | 1550 |
| Measuring distance capability (m)* | 6,000 |
| Distance measurement accuracy (m) | ±1 |
| Azimuth measurement accuracy (°) | ±1/17 |
| Inclination measurement accuracy (°) | ±0.5/8.8 |
| Speed detection | Yes |
| First/last target logic | Yes |
| Gating capability | Yes |
| Gating step (m) | ≥100 |
| Scan mode | Yes |
| Peripheral compatibility | PLGR, Bal Comp, PC, BT, Android™ |
| Distance between objects | Yes |
| Horizontal distance between objects | Yes |
| Azimuth difference between objects | Yes |
| Inclination difference between two objects | Yes |
| Height difference between objects | Yes |
| Display | |
| Meters/yards display | Yes |
| Data output ports | RS-232, USB, Bluetooth (optional), NMEA |
| Last 10 readings recall | Yes |
| Reticle pattern selection | Yes |
| Low battery indicator | Yes |
| Mechanics, Electronics & Environmental | |
| Dimensions (mm) | 210x178x85 |
| Weight without batteries (g) | 1,580 |
| Tripod mountable | Yes |
| Power Supply | 1 x 2CR5 Non-Magnetic |
| Battery life (# of measurements) | 5,000 |
| Operating temperature range (°C) | -40 to +60 |
| Storage temperature range (°C) | -40 to +60 |
| Waterproofing | MIL-STD-810G |
*2.3×2.3m NATO standard target
