Grayguns Sig Sauer P320 Straight Tabbed Trigger System, Competition, Black

P320 Adjustable Straight Tabbed Trigger Kit – Competition

The Grayguns P320 Tabbed Trigger Competition Kit delivers our patent-pending tabbed trigger paired with Bruce Gray’s exclusive competition sear and spring package. This is a single drop-in kit engineered for serious competition and range shooters.

As with all Grayguns performance upgrades, this kit carries a lifetime warranty. Patent Pending design.

For competition and range use only. Not intended for duty or carry.

This kit specifically requires a P320 that has undergone SIG Sauer’s Voluntary Upgrade Program. It does not fit pre-upgrade fire control units.

Does the P320 need a tabbed trigger?

The short answer is no, and we want to be upfront about that. Other striker-fired platforms developed tab-and-locking triggers specifically to pass drop-safety testing required by those designs. The P320, however, is different.

SIG Sauer® engineered the P320 around a mass-balanced trigger, sear, and trigger bar, along with a safety cam surface on the trigger bar that actively helps prevent the sear from disengaging the striker during shock, impact, and rough handling. As a result, the P320 does not fire without the trigger being physically actuated.

In short, this trigger does not change that. It adds a mechanical lock on the trigger shoe that must disengage before the trigger can travel rearward. Designed for competition shooters who want that feature, whatever their reason.

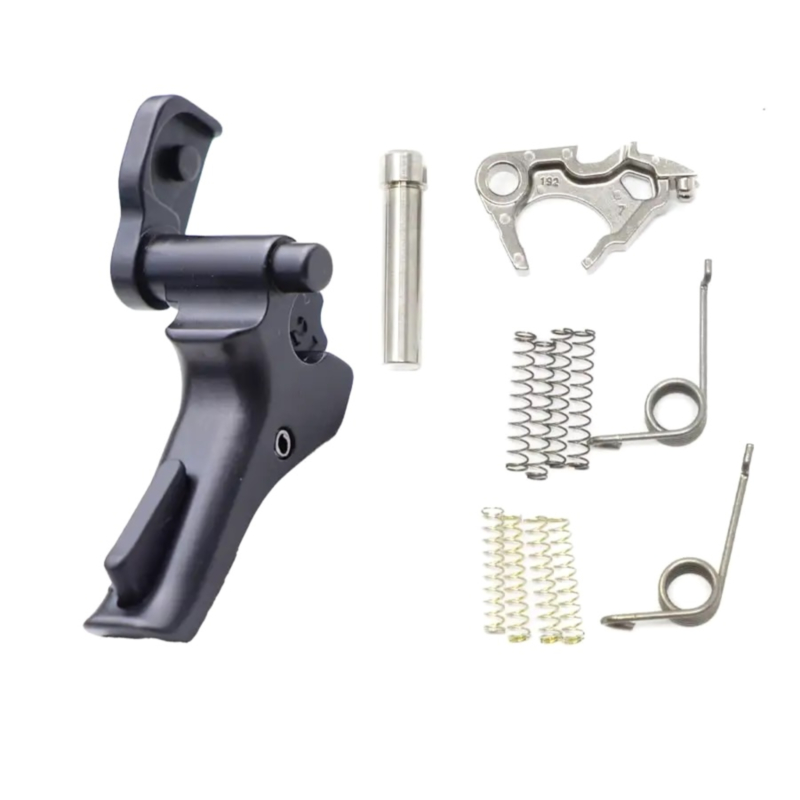

What the Grayguns P320 Tabbed Trigger Competition Kit includes

• Grayguns patent-pending P320 tabbed trigger with built-in overtravel adjustment. Diamond Like Carbon (DLC) coated shoe, Type III anodized tab
• Precision-ground custom competition sear, polished and finished in hard nickel PTFE – designed for competition and range use only
• One set of Grayguns original competition sear springs (silver)
• One set of intermediate competition sear springs (gold)
• One Grayguns original competition light trigger bar spring
• One intermediate trigger bar spring — between competition light and factory weight
• Micro-polished, extended safety lever pin

What makes the Grayguns P320 Tabbed Trigger different?

Trigger Stall Prevention – Many tabbed triggers suffer from trigger stall, when the trigger shoe is inadvertently actuated before the tab fully clears, the trigger locks mid-pull. Unlike those designs, the Grayguns tabbed trigger is specifically designed to prevent this.

The locking bar geometry allows clean disengagement even when a finger contacts the trigger out of sequence, so the trigger never hangs up under pressure or with an imperfect finger position.

Mass-Balanced Design – Grayguns mass balances both the trigger shoe and the locking tab to mitigate each component’s tendency to rotate on its axis under shock or impact. This is the same engineering discipline applied in the P320’s own factory fire control group.

Flush Tab Profile – The tab is contoured to close flush with the trigger shoe face when depressed, eliminating the gap and snag point common to other locking trigger designs. The result: no sharp edges, no holster interference.

Enclosed Locking Bar Spring – The locking bar spring is fully enclosed, blocking fouling and debris. The locking bar contact surfaces actively support positive reset even in a dirty or heavily used pistol.

Competition Kit Specifications

• Trigger shoe finish: Diamond-Like Carbon (DLC) coating
• Safety tab finish: Type III hard anodized
• Material: Bar stock steel, properly heat-treated
• Construction: One-piece machined shoe – no joints or fabrications
• Externally adjustable for overtravel
• Trigger pull weight: Reduces to as low as 4 lbs, depending on spring selection
• All factory mechanical safety values preserved
• Warranty: Grayguns lifetime warranty
• Use: Competition and range only

P320 Tabbed Competition Trigger Kit Fit Guide

This kit fits all post-Voluntary Upgrade SIG Sauer P320 fire control units with or without a manual safety. Compatible with the following models without modification:

• P320 Full Size
• P320 Compact
• P320 Subcompact
• P320 X-Full
• P320 X-Compact
• P320 X-Carry
• P320 X-Five
• P320 X-Five Legion
• P320 X-Five SXG
• P320 AXG Full Size
• P320 AXG Compact
• P320 AXG Scorpion
• P320 RXP Full Size
• P320 RXP Compact
• P320 Spectre Comp
• P320 Legion Full Size
• P320 Legion Compact
• M17
• M18
• P320 XTEN (10mm)

Note: The micro-polished safety lever pin is not used during installation on P320s equipped with a manual safety, including the M17 and M18.

Patent pending.
