Nightforce Optics, SHV 5-20x56mm, MOAR Reticle, .250 MOA Centre Illumination

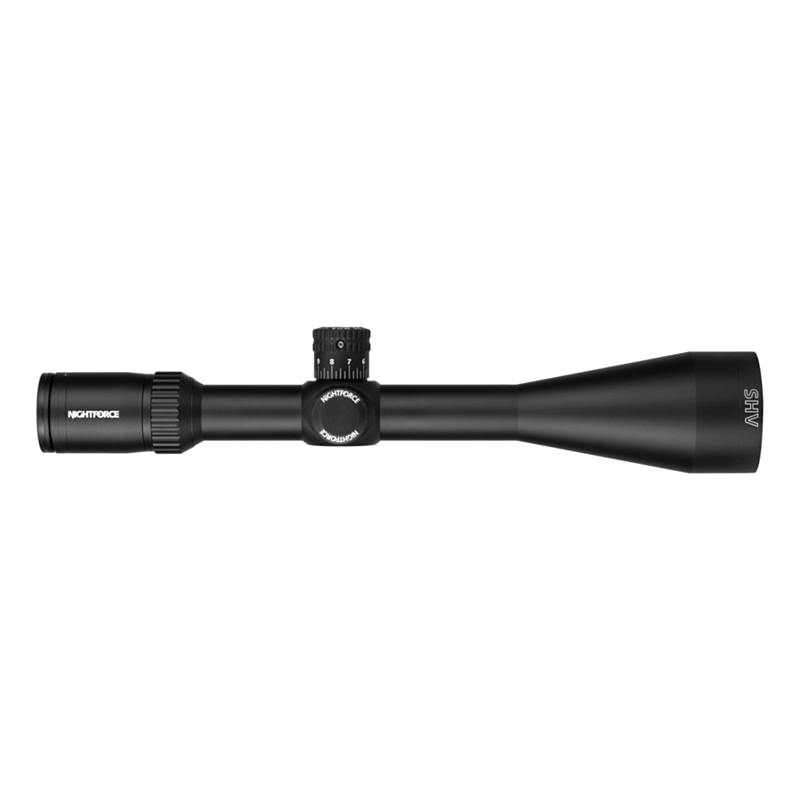

Nightforce SHV 5-20x56mm

The Nightforce SHV 5-20x56mm is the largest in the SHV family and ready for long range targets of all types. With the large diameter objective and adjustable parallax, the 5-20x56mm provides shooters with exceptional clarity and crisp images at any distance. The positive clicks of the ZeroSet elevation turret provide reliable tracking and 80 MOA of travel when precision matters most.

RETICLE

The Nightforce MOAR™- 20 MOA is a variant of the popular MOAR™ reticle with a 20 MOA elevation scale below the main stadia line. The 2 MOA center floating crosshairs provide a quick and uncluttered aiming point for fast target acquisition. The MOAR™ - 20 MOA reticle is available non-illuminated, center-only illumination, and fully illuminated.

SPECS

• Magnification Range: 5-20x

• Focal Plane: Second

• Overall Length: 15.2 in/386 mm

• Weight: 30.5 oz/865 g (illuminated)

• Body Tube Diameter: 30 mm

• Mounting length: 6.5 in/165 mm

• Elevation Feature: ZeroSet™

• Click Value: .250 MOA

• Internal Adjustment Range: E: 80 MOA, W: 50 MOA

• Parallax Adjustment: 25 yd/ 23 m - ∞

• Field of View (@100 yd/m): 5x: 17.9 ft/6.0 m, 20x: 5.0 ft/1.7 m

• Eye Relief :3.5 in/90 mm

• Exit Pupil: 5x: 8.7 mm, 20x: 2.5 mm

• Illumination: Analog (Optional)

• Power Throw Lever: Accessory

• Reticle: MOAR™ - 20 MOA Center Illuminated
