Trijicon ACOG, 3.5x35 308 Red Chevron Ballistic Reticle, TA51 Mount, Black

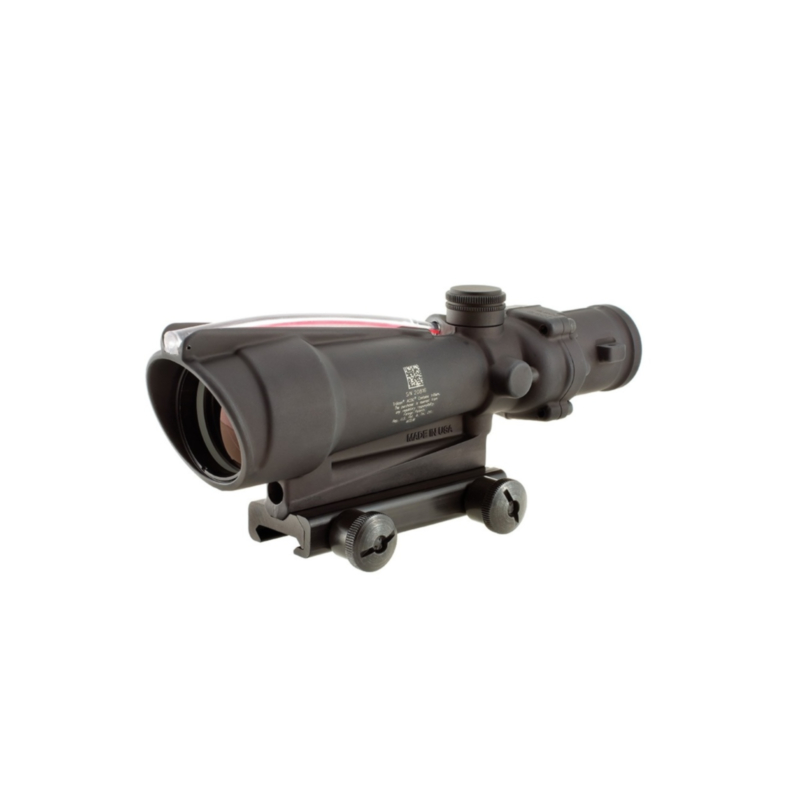

Trijicon ACOG^® 3.5x35 Riflescope - .308 / 7.62 BDC

Red Chevron Reticle, Thumbscrew Mount, Tritium / Fiber Optics Illuminated

ACOG 3.5x35 scope with Red Chevron BAC Reticle- The ranging reticle is calibrated for 7.62 (.308 cal) flat-top rifles to 800 meters. Includes Flat Top Adapter. The chevron reticle is designed to be zeroed using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA which is at 19” at 300 meters. This allows range estimation for silhouette targets.

SPECS

• Length x Width x Height - 8 in x 2.1 in x 2.9 in (203.2mm x 53.34mm x 73.66mm)
• Weight - 17.6 oz. (498.95g)
• Magnification - 3.5x
• Objective Size - 35mm
• Reticle Pattern - Chevron
• Day Reticle Color - Red
• Night Reticle Color - Red
• Bullet Drop Compensating (BDC) - Yes
• Caliber - .308 / 7.62
• Bindon Aiming Concept™ (BAC) - Yes
• Illumination Source - Fiber Optics & Tritium
• Power Source - Fiber Optics & Tritium
• Adjustment - 3 clicks per inch (@100 yds)
• Eye Relief - 2.4 in. (60.96mm)
• Exit Pupil - 0.39 in. (9.91mm)
• Field of View (degrees) - 5.5°
• Field of View (feet) - 28.9 ft. @ 100 yds. (9.63m @ 100m)
• Mount - Flattop Thumbscrew Mount (TA51)
• Housing Material - Forged Aluminum
• Finish - Matte Black
