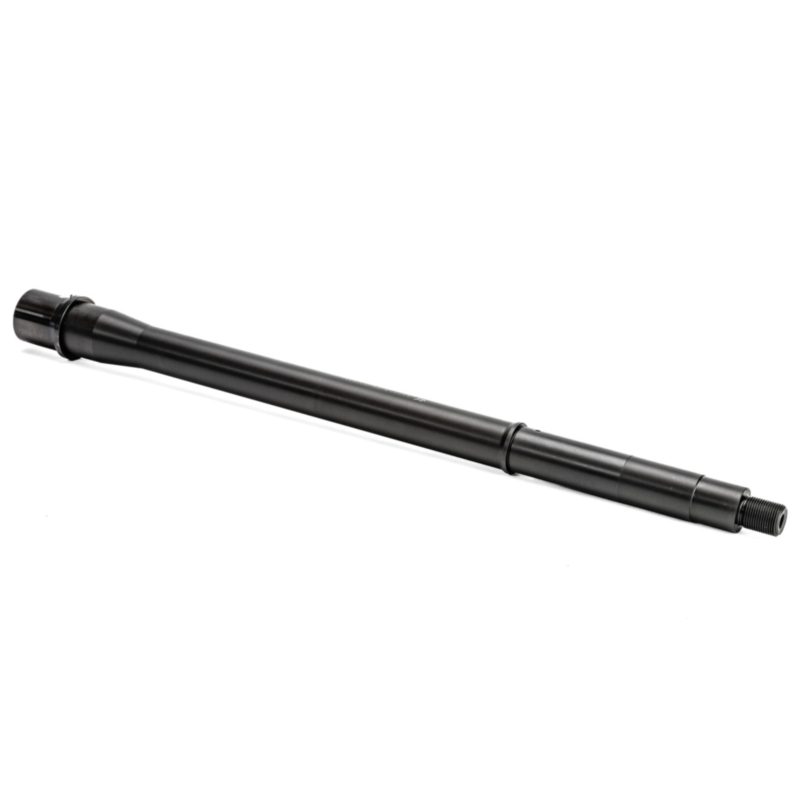

Griffin Armament 13.9" 416R 223 Wylde HEDP Barrel, Black Nitride

GRIFFIN 13.7" 416R 223 WYLDE HEDP BARREL

The Griffin HEDP™ Barrels provide High Endurance Dual Purpose functionality- offering high durability and precision accuracy. Nitrided 416R stainless steel provides the highest possible hardness and longest throat life available with match grade bore dimensions and bore finish. HEDP barrel bores are hand lapped, ensuring batch to batch consistency and accuracy. TRUE-BORE™ concentric suppressor grade threads provide an optimized thread interface for your silencer regardless of brand or model. M4 feed ramps and chambers are polished prior to nitriding for smooth reliable feeding, chambering, and extraction. Gas ports were carefully engineered to provide reliable function suppressed or unsuppressed with 5.56 NATO ammunition. M4A1 contour diameter between the chamber and gas block for minimal POI shift with suppressors and maximum accuracy and durability while maintaining field weight.

5R rifling is believed by many to be superior to conventional rifling, reducing bullet deformation, and barrel fouling, affording more consistent accuracy, reduction of wear (greater life), and greater ease of cleaning.  5R rifling was used in the legendary Army M24 Sniper Weapon System (SWS) and those rifles were found to meet or exceed accuracy requirements at over 20,000 rounds fired.

Barrel weighs 27.6 ounces.

FEATURES

• 13.9" barrel length
• 416R SS barrel manufactured from stress relieved certified barrel steel
• Black nitrided for extended service life
• Magnetic particle inspected
• Button rifled
• 5R rifling offering less constriction on the bullet
• 223 Wylde chamber for optimal accuracy
• Mid-length gas system for softer recoil characteristics
• .750" gas block journal
• M4A1 diameter for reduced POI shift / Increased Accuracy & Durability
• Air gauged and hand lapped bore
• Polished chamber and M4 feed ramps
• TRU-BORE™ suppressor quality threads
• Suppressor optimized gas ports
• .625", 1/2x28 industry standard threads
• Barrel weight : 27.6oz
• 1/8 Twist

SPECS

• SKU: HE137223W
• Caliber: 5.56mm (.223)
• Length: 13.7"
• Type Of Part: Barrel
• Thread Pitch: 1/2x28
