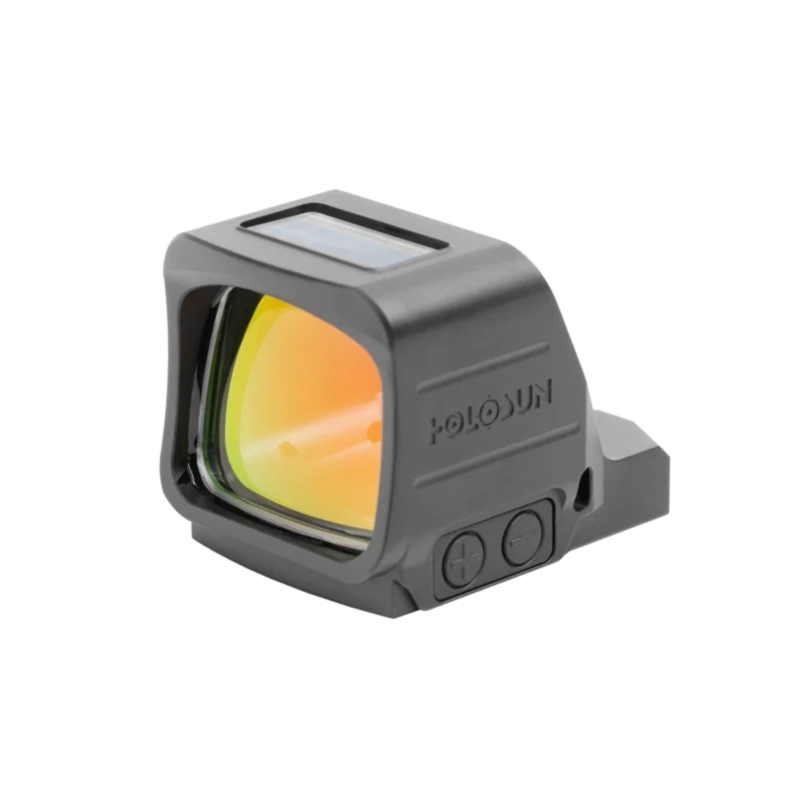

Holosun Optics, HS507 Promax Open Reflex Sight, Red Dot, Competition Reticle System
Holosun Optics, HS507 Promax Open Reflex Sight, Red Dot, Competition Reticle System
HS507-PROMAX-RD-PRS
The 507-PROMAX-RD-PRS pairs an enlarged viewing window with a forward-leaning sunshade to reduce glare and maintain a sharp reticle in bright conditions.
Its Performance Reticle System, 7075-T6 aluminum housing, Solar Failsafe, Shake Awake, and side-loading CR1632 battery deliver adaptable aiming and dependable performance in demanding environments.
FEATURES
- Performance Reticle System
Selectable reticle system featuring a 2 MOA dot with optional 8, 20, or 32 MOA circles for speed or precision shooting. - Red Super LED Technology
650nm red emitter delivers a bright, efficient reticle with excellent clarity in varying lighting conditions. - Expanded Competition Viewing Window
Large 1.18 × 0.98 inch window provides a wider field of view for faster transitions and improved target tracking. - Integrated Forward Sunshade
Forward leaning sunshade reduces glare and preserves reticle clarity in bright shooting environments. - Solar Failsafe System
Solar panel provides automatic brightness assistance and backup power in changing lighting conditions. - Shake Awake Technology
Motion activation instantly powers the optic on and powers down during inactivity to conserve battery life. - Manual Brightness with Lockout Mode
Brightness controls include memory and lockout functions to prevent accidental adjustments during competition. - Side Mounted Battery Tray
CR1632 battery compartment allows quick replacement without removing the optic from the slide. - 7075-T6 Aluminum Housing
Hard anodized aluminum construction delivers durability and strength for demanding competition use. - RMR Footprint Compatibility
Industry standard RMR footprint allows direct mounting to a wide range of optics ready pistol slides.
SPECS
FUNCTIONS
-
Selectable Reticle: Yes
-
Solar Power: Yes
-
Shake Awake Technology: Yes
-
Auto Off: Yes
-
Memory: Yes
-
Manual Brightness: Yes
-
Automatic Brightness: No
-
Lockout Mode: Yes
OPTICAL DATA
-
Light Source: LED
-
Wavelength: 650nm
-
Reticle: 2 MOA Dot & 8/20/32 MOA Circle
-
Magnification: 1x
-
Parallax: No
-
Unlimited Eye Relief: Yes
-
Multi-Coatings: Yes
ELECTRONIC DATA
-
Battery: CR1632
-
Battery Life (Setting 6): 50,000 Hours
-
Brightness Setting: 8 Daylight & 4 NV
-
Removable Battery: Yes
-
Battery Location: Side Tray
MECHANICAL DATA
-
Housing Material: 7075 T6 Aluminum
-
Surface Finish: Anodized
-
Housing Color: Black
-
Adjustment Per Click: 1 MOA
-
W&E Travel Range: ±30 MOA
-
Storage Temperature: -40°C~70°C
-
Working Temperature: -30°C~60°C
-
Submersion: IP67
-
Vibration: 5000G
PHYSICAL DATA
-
Window Size: 1.18" × 0.98"
-
Body Dimensions: 1.8" × 1.4" × 1.38"
-
Body Weight: 1.7 oz
