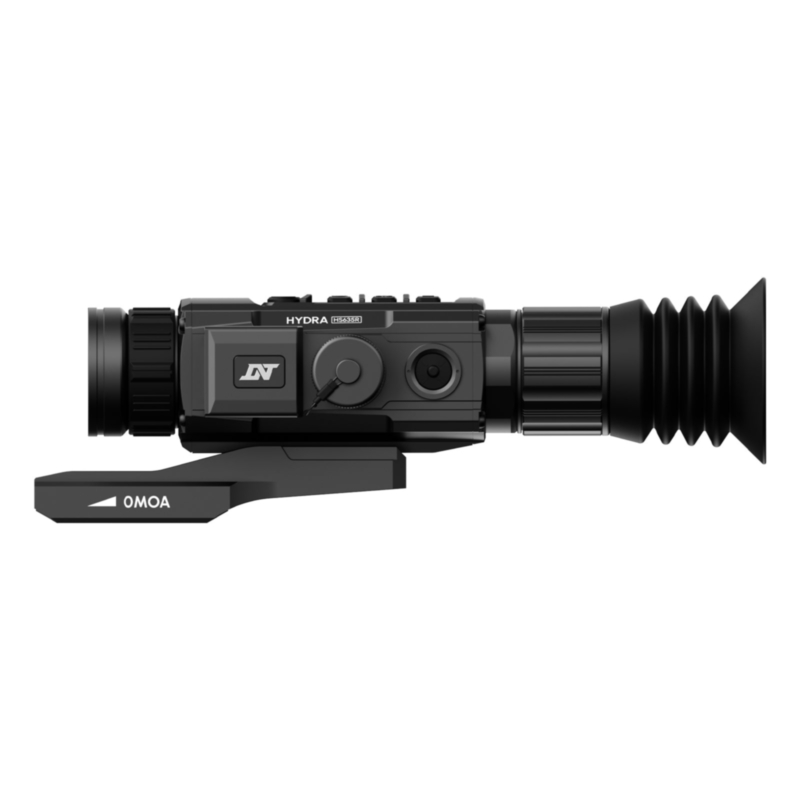

DNT Optics, Hydra 640x512 35mm Multi-Function Thermal Scope, with Laser Rangefinder & Ballistic Calculator

HS635R - HYDRA-LRF Multi-Function Thermal Scope with Laser Rangefinder and Ballistic Calculator - Standalone Scope, Clip-On, Handheld Monocular

Combining Standalone Scope, Clip-On, Handheld Monocular, Laser Rangefinder,and Ballistic Calculator in one versatile device, the HS635R offers advanced targeting precision and reliable performance. Designed for professional hunters, it ensures accurate detection, long-range engagement, and effortless operation across diverse hunting scenarios.

Precision Ranging with Built-in Ballistic Calculator

The HS635R integrates a high-precision laser rangefinder capable of measuring distances from 5 to 1,300 yards. Coupled with its onboard ballistic calculator, it provides instant, accurate drop compensation tailored to the measured range. Ballistic profiles can be adjusted directly on the device or fine-tuned via the DNT App, providing control and adaptability across diverse scenarios.

The HS635R is powered by a 12 μm, ≤18 mK uncooled infrared sensor (640×512), producing sharp, high-contrast thermal images rich in fine detail. Its 35 mm objective lens extends detection range while maintaining clear target recognition. DNT’s Image Super Resolution (ISR) boosts the sensor to near 960-equivalent at 6x digital zoom, enhancing clarity and preserving fine details. With 1.5x base magnification and up to 6x digital zoom, it captures every detail even in demanding environments.

Compact yet tough, the HS635R endures nature’s harshest conditions. IP67-rated and built with a rugged, shock-resistant housing, it handles recoil up to .50 BMG, ensuring reliable performance in rain, snow, or sand.

Paired with the QDM150 quick detach mount (sold separately), the HYDRA enables seamless operation across thermal clip-on, handheld monocular, and standalone scope modes. Simple, secure, pure flow.

SPECIFICATIONS

• Resolution - 640*512 pixels
• Sensor Frame Rate - 50FPS
• Image Sensor - Uncooled infrared sensor
• Pixel Size - 12x12um
• NETD - ≤18mk @25℃
• Objective Lens Focal Length - 35mm
• Base Magnification - 1.5x
• Digital Magnification - 1.5-6x
• Field of View(HxV) - 21.9yd@100yd x 17.6yd@100yd

Display Specifications

• Type - Micro-OLED
• Display Resolution - 1024x768 pixels
• Frame Rate - 50Hz

Battery Power Supply

• Battery Type - 18650 Battery(Flat-top)
• Operating Time - 4h
• External Power Supply - 5V - Type C USB

Physical Specifications

• Net Weight - 15.0 oz
• Memory - Bulit-in memory, 32GB
• Dimensions - 7.9*2.7*2.0 Inches
• IP Waterproof - IP67
• WIFI/APP - YES(DNT)
• Operating Temperature - -4～122℉
• Operation Distance - 5-1200yds
• Recoil Rating - .50BMG
