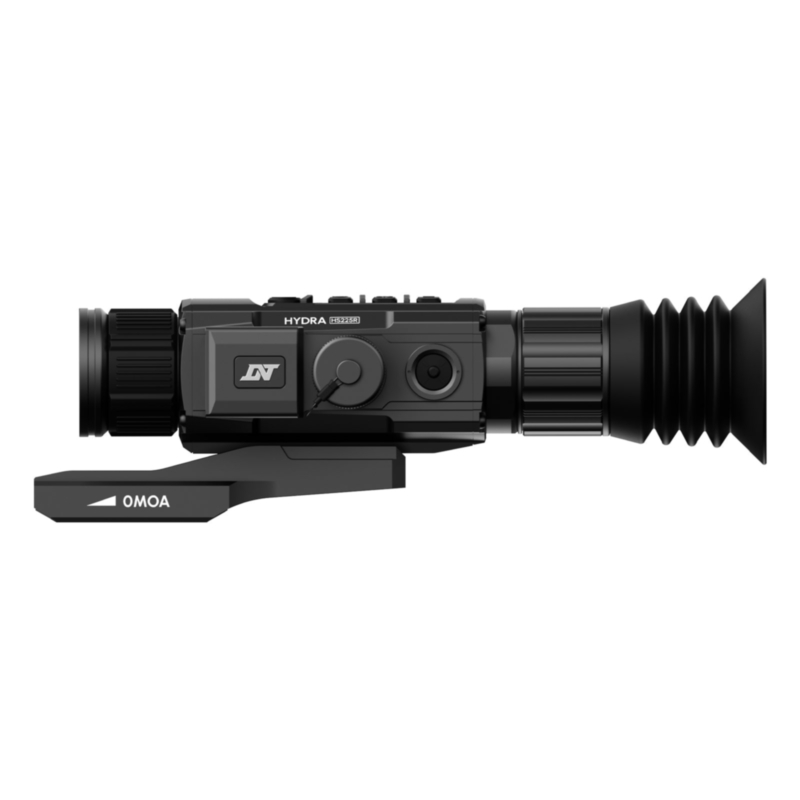

DNT Optics, Hydra 256x192 25mm Multi-Function Thermal Scope, with Laser Rangefinder & Ballistic Calculator
ESTIMATED DELIVERY | 4-6 WEEKS
We will notify you when this item becomes available.
DNT Optics, Hydra 256x192 25mm Multi-Function Thermal Scope, with Laser Rangefinder & Ballistic Calculator
HS225R - HYDRA-LRF Multi-Function Thermal Scope with Laser Rangefinder and Ballistic Calculator - Standalone Scope, Clip-On, Handheld Monocular
Combining Standalone Scope, Clip-On, Handheld Monocular, Laser Rangefinderand Ballistic Calculator in one versatile device, the HS225R is HYDRA-LRF’s most accessible model, perfect for newcomers looking to unlock precision thermal vision. Compact yet capable, it outperforms other entry-level thermal scopes, offering unmatched versatility and essential features for those starting their thermal optics journey.
Precision Ranging with Built-in Ballistic Calculator
The HS225R integrates a high-precision laser rangefinder capable of measuring distances from 5 to 1,300 yards. Coupled with its onboard ballistic calculator, it provides instant, accurate drop compensation tailored to the measured range. Ballistic profiles can be adjusted directly on the device or fine-tuned via the DNT App, providing control and adaptability across diverse scenarios.
Powerful Thermal Imaging for Clear, Real-Time Vision
The HS225R features a 12 μm, ≤25 mK uncooled infrared sensor (256×192) and a 1024×768 Micro-OLED display at 50 Hz, delivering smooth, detailed thermal imaging. DNT’s Image Super Resolution (ISR) boosts the sensor to 384-equivalent, enhancing clarity and preserving fine details. With 3x base magnification and up to 12x digital zoom, it captures precise details even in demanding conditions.
Compact, Rugged, Ready for Any Challenge
Compact yet tough, the HS225R endures nature’s harshest conditions. IP67-rated and built with a rugged, shock-resistant housing, it handles recoil up to .50 BMG, ensuring reliable performance in rain, snow, or sand.
Maximize HYDRA’s Adaptability with QDM150
Paired with the QDM150 quick detach mount (sold separately), the HYDRA enables seamless operation across thermal clip-on, handheld monocular, and standalone scope modes. Simple, secure, pure flow.
SPECIFICATIONS
Sensor Specifications
- Resolution - 256*192 pixels
- Sensor Frame Rate - 50FPS
- Image Sensor - Uncooled infrared sensor
- Pixel Size - 12x12um
- NETD - ≤25mk @25℃
- Objective Lens Focal Length - 25mm
- Base Magnification - 3x
- Digital Magnification - 3-12x
- Field of View(HxV) - 12.3yd@100yd x 9.2yd@100yd
Display Specifications
- Type - Micro-OLED
- Display Resolution - 1024x768 pixels
- Frame Rate - 50Hz
Battery Power Supply
- Battery Type - 18650 Battery(Flat-top)
- Operating Time - 5.5h
- External Power Supply - 5V - Type C USB
Physical Specifications
- Net Weight - 14.4 oz
- Memory - Bulit-in memory, 32GB
- Dimensions - 8.0*2.7*2.0 Inches
- IP Waterproof - IP67
- WIFI/APP - YES(DNT)
- Operating Temperature - -4～122℉
- Operation Distance - 5-1200yds
- Recoil Rating - .50BMG
